A pool keeps dropping. The bucket test says it is a real leak, not evaporation. The shell looks clean, and the dye shows nothing at the fittings. Now the question is the plumbing buried under the deck. That is where a hydrostatic test comes in.

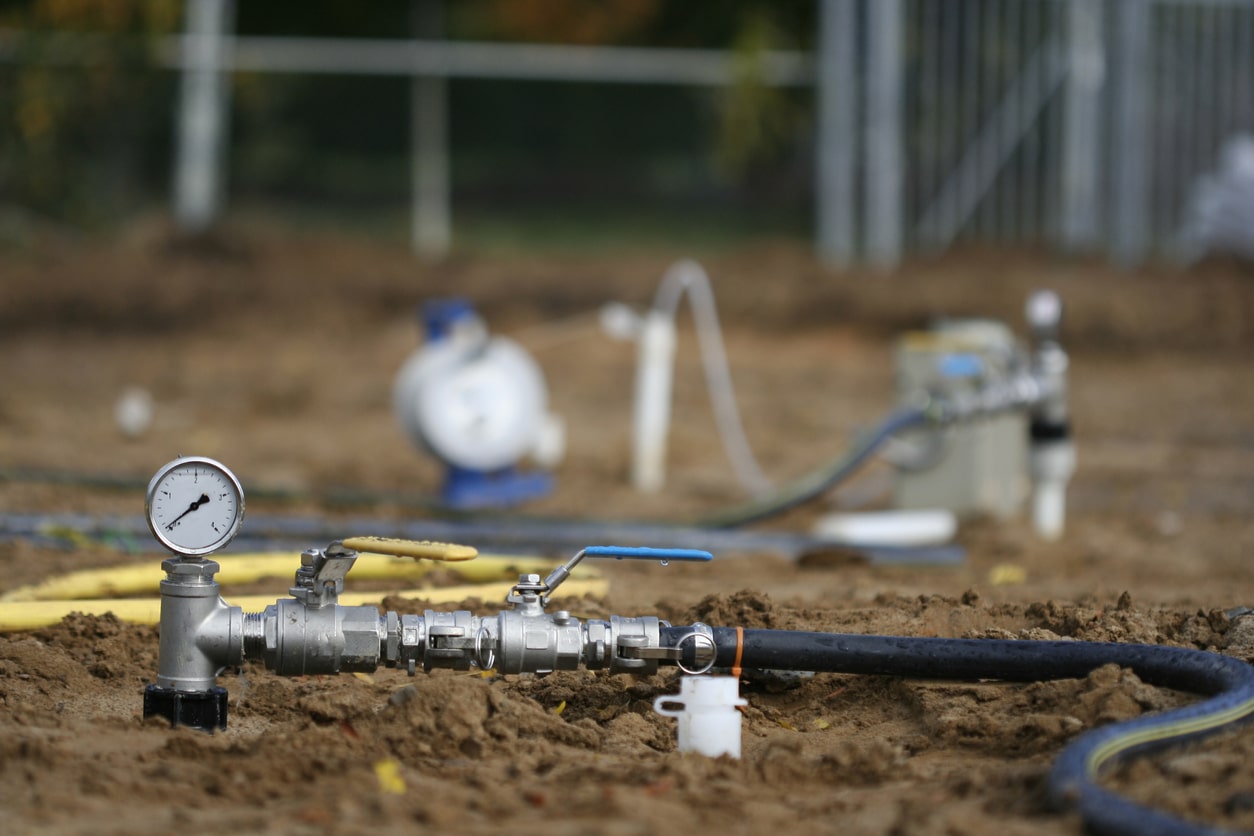

A hydrostatic test fills a pipe with water and raises the pressure to a set level. Then you hold it and watch the gauge. If the pressure holds, the line is tight. If it drops, that line leaks.
We build pool leak detection equipment at LeakTronics in Agoura Hills, California. This guide covers how hydrostatic testing works on pool lines, the plugs and pressure rig pros use, why low pressure matters, and what to do when a line fails.
Pool Line Testing vs. Pipeline Testing: Two Kinds of Hydrostatic Test
| Question | Pipeline or Code Hydrostatic Test | Pool Line Hydrostatic Test |
|---|---|---|
| What is the goal? | Prove strength and structural integrity before the system goes into service. | Find out which pool line is leaking. |
| How much pressure? | Above design pressure, often 1.25 to 1.5 times, set by code. | Low. We test at 7 to 10 psi of water. |
| How long? | From 10 minutes to 8 hours or more. | Minutes per line, once the plugs are set. |
| What gets tested? | Pipelines, pressure vessels, boilers, and gas cylinders. | Skimmer, return, main drain, spa, and cleaner lines. |
| What tools? | A test pump, calibrated gauges, and a chart recorder. | Aqua Plugs, test plugs, a pressure rig, and listening gear. |
Search for hydrostatic testing and you will mostly find pipeline companies and plant engineers. Pool pros use the same method on a much smaller scale, with a very different goal.
A hydrostatic test tells you a pool line leaks. It will never tell you where. Cranking the pressure to make the leak show itself is how you blow a skimmer seam or pop a plug. We isolate the line, add just enough pressure to read the gauge, and let the listening gear do the rest.
The Pool Hydrostatic Test Kit: Aqua Plugs, Test Plugs, and a Pressure Rig
A good pool pressure test needs three things. You need a way to seal every opening, a way to add controlled pressure, and a gauge you can trust.

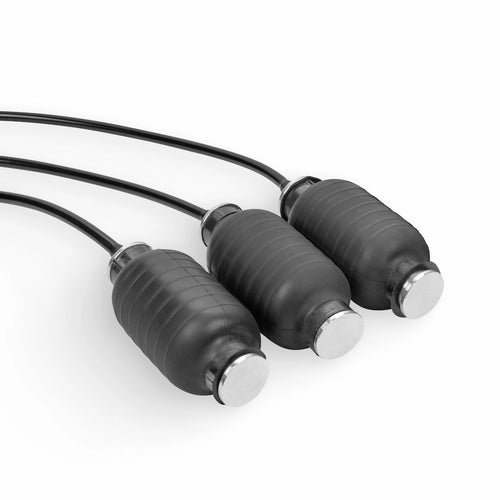

- Aqua Plugs. These inflatable plugs seal pool plumbing from 3/4 inch up to 3 inches. They expand evenly to grip fittings that are out of round, worn from corrosion, or oddly sized. That makes them ideal for skimmer throats, old return fittings, and buried ports. Shop Aqua Plugs in small, medium, and large sizes.
- Red Line test plugs. Our silicone Red Line plugs seal standard lines from 1/2 inch to 2 inches. The Service Plug Kit packs 40 pieces, and the Universal Plug Kit packs 71.
- Injector plugs. Injectors seal the line and give you a port to push in water or air. They are how the rig connects to the pipe.

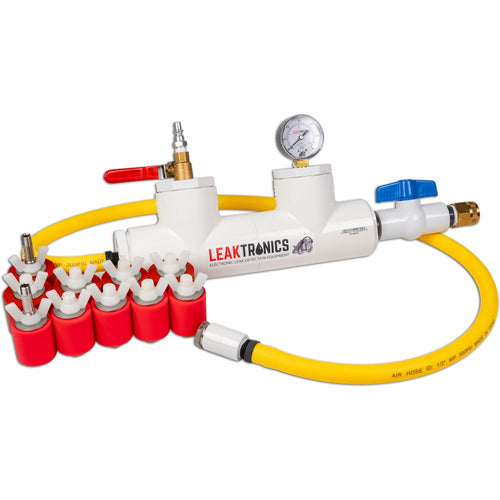

- The pressure rig. Our Pressure Test Kit is built around a rig with controllable air and water valves and a gauge. It ships with 1.5 inch and 2 inch injection and compression plugs.
Want it all in one bag? The Master Aqua Plug Kit includes small, medium, and large Aqua Plugs, injectors, testing cones, and an inflatable pressure rig. It covers every standard pool plumbing size. Browse the rest of our plugs and pressure testing gear to fill in your truck.
One hard rule: Aqua Plugs are built for static and low-pressure testing only. Never exceed 10 psi when pressure testing with any Aqua Plug.
How the Hydrostatic Testing Process Works on Pool Lines
Every pool is plumbed a little differently, so hydrostatic testing procedures vary. The core testing process stays the same.
- Shut down the equipment. Turn off the pump and isolate the pad. Never pressurize through the pump, filter, or heater.
- Isolate the test section. Plug the pool end of each line with Aqua Plugs or Red Line plugs. Close each valve at the pad so you test one line at a time.
- Fill it. Start by filling it with water, using clean testing water from a hose. Bleed air from the high points, since trapped air throws off the gauge.
- Pressurize. Connect the rig to an injector plug and bring the internal pressure up to the specified test pressure slowly. We work at 7 to 10 psi.
- Hold and watch. The test is performed over a short test period. Watch the gauge for pressure loss, and do a visual inspection of every fitting you can see.
- Record and restore. Log the testing results for each line. Then release pressure, pull the plugs, and restore the system.
Testing each line on its own is the whole point. Skimmer lines, returns, the main drain, and spa lines each get a pass or fail. When one line drops and the rest hold, you know exactly where to focus. For a deeper walkthrough, see our guide on how to pressure test pool lines.
Accurate testing depends on a tight seal at every plug. Temperature matters too. Water in a sunny line warms and cools, and the gauge moves with it. A slow drift is not always a leak. Retest before you call it.
Static Testing First: Cones, Dye, and No Pressure at All
Before you pressurize anything, try a static test. It needs no pressure at all.
Static testing cones fit into a pool fitting with the equipment off. Put a little dye at the small hole in the cone. If the dye gets pulled in, water is leaving through that line. If it sits still, the line is holding.
This is often the fastest way to rule lines in or out, especially at the main drain. We walk through it in our main drain leak detection guide. The Master Aqua Plug Kit includes testing cones for this reason.
Testing Requirements: From Pool Codes to ASME and PHMSA
Testing requirements depend on what you are testing.
- New pool construction. Many builders pressure test the plumbing before the shell is shot and the deck is poured. Local building departments set the testing requirements, so check with your inspector.
- Existing pools. Leak detection testing on a finished pool is diagnostic. There is no code test pressure. The goal is to find the leak without causing a new one.
- Process piping (ASME B31.3). Industrial hydrotesting runs at no less than 1.5 times the design pressure, held for at least 10 minutes.
- Pressure vessels (ASME Section VIII). Tanks and small pressure vessels are tested at about 1.3 times their maximum allowable working pressure.
- Pipelines (PHMSA). The Pipeline and Hazardous Materials Safety Administration, part of the Department of Transportation, regulates gas and liquid petroleum lines. Test pressure is tied to the maximum allowable operating pressure and the specified minimum yield strength (SMYS) of the pipe.
In that world, testing is one piece of pipeline safety. Operators run integrity management plans that pair a pressure test with inline inspection tools. Those tools scan for corrosion and dents along the whole pipeline route. A natural gas or gas pipeline cannot return to service until a successful hydrostatic test is on record, which is why pipeline integrity work carries so much downtime.
That industrial world uses full hydrostatic pressure testing because the pipe must prove it can survive high pressure. A pool line does not need to prove that. It only needs to show whether it holds water.
Hydrostatic Testing Methods: Water vs. Pneumatic Pressure Test
A pneumatic pressure test uses air or nitrogen instead of water. In industry, it is used when water cannot be left in a line. But compressed gas stores far more energy than water. A failure under high pneumatic pressure can be violent, so codes limit it.
Pool leak detection uses both, just at low pressure and for different jobs:
- Water to test. Water barely compresses. A line filled with water gives a clean, steady gauge reading.
- Air to locate. Once a line fails, low-pressure air is pushed into it through an injector. The air escaping the break makes a sound a listening mic can hear through the deck or soil.
That is why our pressure rig has both air and water valves. Aqua Plug injectors in medium and large sizes handle the air side on bigger pool lines.
Gas cylinders use their own methods. A water jacket test measures how much a cylinder swells under pressure. Permanent deformation or rupture means it fails.
Safety and Reliability: Why High Pressure Hurts Pool Plumbing
Pool plumbing runs at low normal operating pressure. It is not industrial pressure equipment, and it was never designed for industrial test pressure.
The weak points are skimmer seams, glued fittings, old return fittings, light niche conduits, and the plugs themselves. Push well past the designed working pressure and one of them can fail mid-test. Now you have a new leak, or a plug shooting out of a fitting.
Stay safe with a few simple habits:
- Keep pressurization low. 7 to 10 psi of water is plenty to read a drop. Aqua Plugs have a hard 10 psi limit.
- Isolate the equipment pad. Pumps, filters, and heaters are not part of the test.
- Wear eye protection. Plugs under pressure can release without warning.
- Verify before you dig. Confirm a failed line with a second test before anyone cuts the deck.
There is a second kind of hydrostatic pressure every pool pro should respect. Groundwater pushes up on an empty pool shell. Drain a pool for a repair when the water table is high, and the shell can lift or float. That is what the hydrostatic relief valve in many main drains is for. Check groundwater before you ever drain a pool.
What Happens When a Pool Line Fails a Hydrostatic Test?
A failed test means the gauge dropped. You know which line leaks. You still need to know where along the line. Here is how pros finish the job:
- Confirm the drop. Retest to rule out a leaky plug, a cooling line, or a valve that will not seal.
- Trace the line. A line locator like our PG-2 pulse generator shows exactly where the pipe runs under the deck.
- Listen for it. Inject low-pressure air and listen with a ground mic and amplifier. Our pool leak detection kits are built for this step.
- Mark it and repair once. Open one spot in the deck, or reline the pipe with a trenchless pipe repair system.
Pool owners: if your pool keeps losing water and you suspect the plumbing, do not start breaking the deck on a guess. Find a trained pool leak detection pro through our Find A Pro directory, or call us at (818) 436-2953.
Pool Hydrostatic Test FAQ: Time, Frequency, and Cost
How long does a hydrostatic test take on a pool? Each line takes minutes once it is plugged and pressurized. A full pool with skimmers, returns, a main drain, and a spa takes longer, mostly for setup. Industrial tests run from 10 minutes to many hours.
How often should pool lines be tested? Test during construction, after any plumbing repair, and whenever the pool loses more water than evaporation explains. There is no fixed schedule for a finished pool.
What does a pool pressure test cost? Cost depends on the number of lines, access, and whether the leak also needs to be located. Many leak detection companies price testing and locating together. Ask what is included before the tech arrives.
Can a hydrostatic test find every leak? No. It proves a line holds or fails at the test pressure. It does not test the shell, the light, or the tile line. That is why pros pair line testing with dye testing and a hydrophone in the pool.
Get the Right Pool Pressure Test Equipment
For pool lines, the right hydrostatic test is simple. Isolate the line, keep the pressure low, and let the test equipment tell you whether it holds. Then use listening gear to find where it leaks.
LeakTronics designs and builds Aqua Plugs, Red Line plugs, pressure rigs, and complete pool leak detection kits in Agoura Hills, California. Every kit is backed by our online swimming pool leak detection training and support from techs with over 30 years in the field.
Start with the Master Aqua Plug Kit, grab the Which Kit Is Right For Me catalog, or book a free 1-on-1. You can also call (818) 436-2953. Plug it. Test it. Find it. Fix it once.
